Docker is an open platform for developing, shipping, and running applications
Docker does this by combining kernel containerization features with workflows and tooling that helps you manage and deploy your applications
Hello World
docker run hello-world -=> Run a hello world container
docker images -=> Take a look at the container image it pulled from Docker Hub
docker run hello-world -=> The second time you run this, the docker daemon finds the image in your local registry and runs the container from that image
docker ps -=> Look at the running containers
docker ps -a -=> To see all containers, including ones that have finished executing
Build
mkdir test && cd test -=> To create and switch into a folder named test
Create a Dockerfile
Create the node application
docker build -t node-app:0.1 .
docker run -p 4000:80 --name my-app node-app:0.1 -=> Run
curl http://localhost:4000
docker stop my-app && docker rm my-app -=> To stop and remove the container
docker run -p 4000:80 --name my-app -d node-app:0.1 docker ps -=> Start the container in the background
docker logs [container_id]
Debug
docker logs -f [container_id] -=> If you want to follow the log's output as the container is running
docker exec -it [container_id] bash
docker inspect [container_id] -=> Examine a container's metadata in Docker
Publish
Orchestrating the Cloud with Kubernetes
Theory
Cluster > Pods > Container > Nodes > Instance
Kubernetes Create
Deployments keep the pods up and running even when the nodes they run on fail
Pods
Pods represent and hold a collection of one or more containers
Pods also have Volumes. Volumes are data disks that live as long as the pods live, and can be used by the containers in that pod
Pods also share a network namespace. This means that there is one IP Address per pod
Creating Pods
Interacting with Pods
By default, pods are allocated a private IP address and cannot be reached outside of the cluster
Services
Services use labels to determine what Pods they operate on
The level of access a service provides to a set of pods depends on the Service's type
ClusterIP (internal) -=> The default type means that this Service is only visible inside of the cluster
NodePort gives each node in the cluster an externally accessible IP and
LoadBalancer adds a load balancer from the cloud provider which forwards traffic from the service to Nodes within it
Creating a Service
Adding Labels to Pods
Deploying Applications with Kubernetes
Deployments are a declarative way to ensure that the number of Pods running is equal to the desired number of Pods, specified by the user
Behind the scenes Deployments use Replica Sets to manage starting and stopping the Pods
A ReplicaSet's purpose is to maintain a stable set of replica Pods running at any given time
Pods are tied to the lifetime of the Node they are created on
Managing Deployments Using Kubernetes Engine
Theory
Dev Ops practices will regularly make use of multiple deployments to manage application deployment scenarios such as "Continuous Deployment", "Blue-Green Deployments", "Canary Deployments" and more
Heterogeneous deployments typically involve connecting two or more distinct infrastructure environments or regions to address a specific technical or operational need
Heterogeneous deployments are called "hybrid", "multi-cloud", or "public-private", depending upon the specifics of the deployment
Various business and technical challenges can arise in deployments that are limited to a single environment or region -=> Maxed out resources, Limited geographic reach, Limited availability, Vendor lock-in, Inflexible resources
Three common scenarios for heterogeneous deployment are multi-cloud deployments, fronting on-premises data, and continuous integration/continuous delivery (CI/CD) processes
Learn about the deployment object
kubectl explain deployment -=> The explain command in kubectl can tell us about the Deployment object
kubectl explain deployment --recursive -=> See all of the fields
kubectl explain deployment.metadata.name
Create a deployment
Scale a Deployment
Rolling update
When a Deployment is updated with a new version, it creates a new ReplicaSet and slowly increases the number of replicas in the new ReplicaSet as it decreases the replicas in the old ReplicaSet
Trigger a rolling update
Pause a rolling update
Resume a rolling update
Rollback an update
Canary deployments
Canary deployments allow you to release a change to a small subset of your users to mitigate risk associated with new releases
Create a canary deployment
A canary deployment consists of a separate deployment with your new version and a service that targets both your normal, stable deployment as well as your canary deployment
Verify the canary deployment
Canary deployments in production - session affinity
Blue-green deployments
There are instances where it is beneficial to modify the load balancers to point to that new version only after it has been fully deployed
Blue-Green Rollback
Continuous Delivery with Jenkins in Kubernetes Engine
Theory
Jenkins is the go-to automation server used by developers who frequently integrate their code in a shared repository
Kubernetes Engine is Google Cloud's hosted version of Kubernetes - a powerful cluster manager and orchestration system for containers
Jenkins is an open-source automation server that lets you flexibly orchestrate your build, test, and deployment pipelines

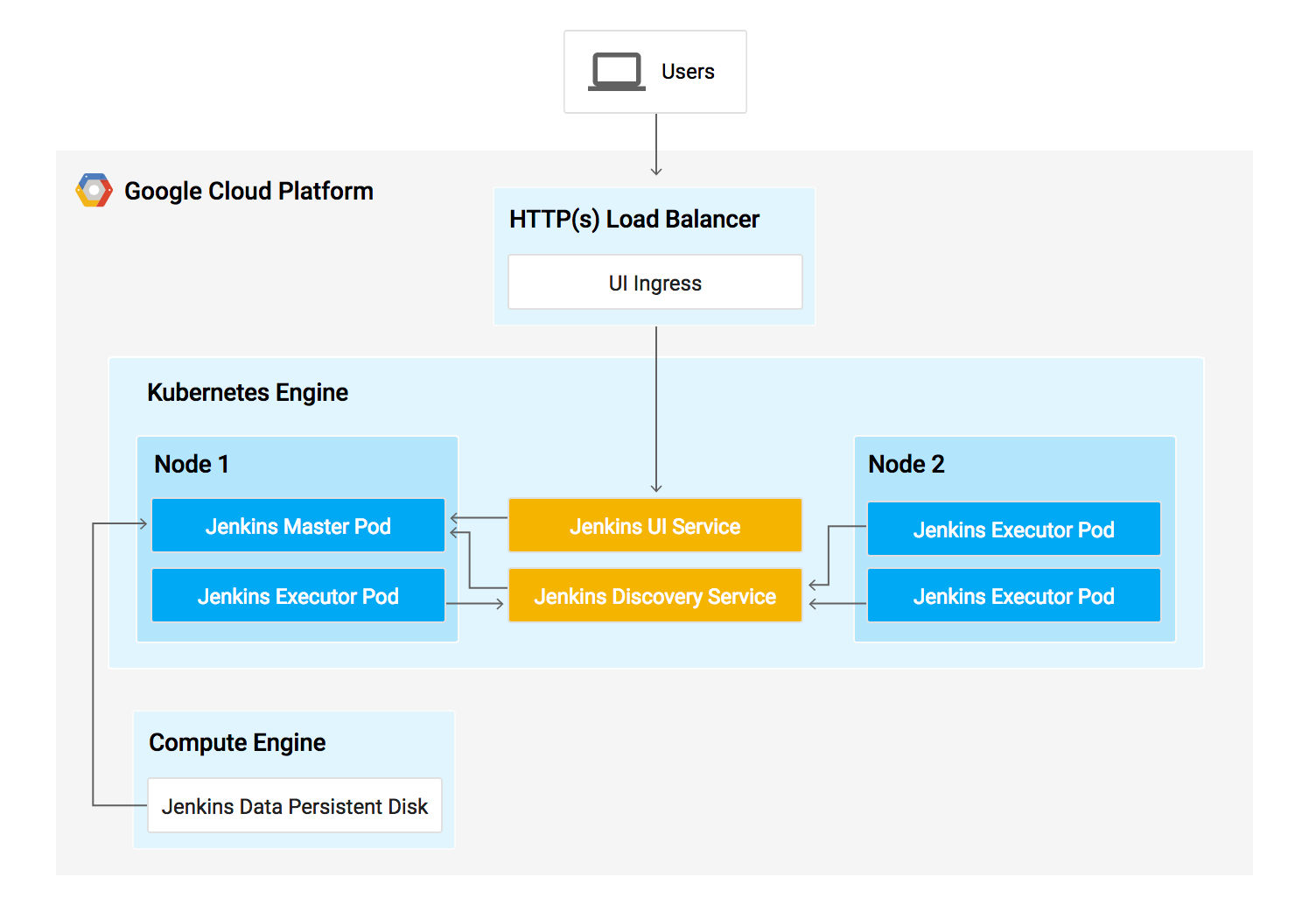

When you need to set up a continuous delivery (CD) pipeline, deploying Jenkins on Kubernetes Engine provides important benefits over a standard VM-based deployment
Provisioning Jenkins
Creating a Kubernetes cluster
Setup Helm
Helm is a package manager that makes it easy to configure and deploy Kubernetes applications
Configure and Install Jenkins
Connect to Jenkins
Understanding the Application
In backend mode: gceme listens on port 8080 and returns Compute Engine instance metadata in JSON format
In frontend mode: gceme queries the backend gceme service and renders the resulting JSON in the user interface
Deploying the Application
Production: The live site that your users access
Canary: A smaller-capacity site that receives only a percentage of your user traffic
Creating the Jenkins Pipeline
Creating a repository to host the sample app source code
Adding your service account credentials
Creating the Jenkins job
Creating the Development Environment
Creating a development branch
Modifying the pipeline definition
The Jenkinsfile that defines that pipeline is written using the Jenkins Pipeline Groovy syntax
